Standard Included

(1) SUNON12 12kW Inverter

(1) 200CM CAT6 Communication cable connect with battery

(1) Operation manual

(1) Wifi dongle

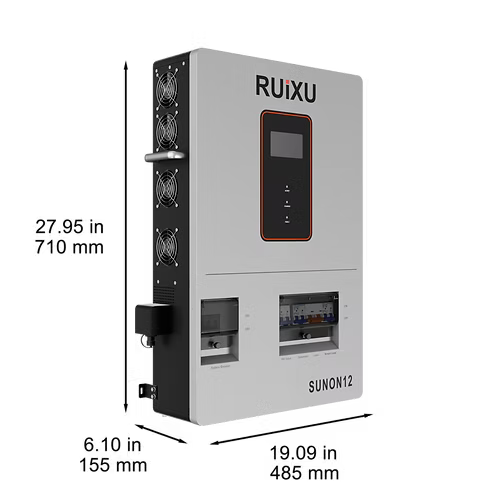

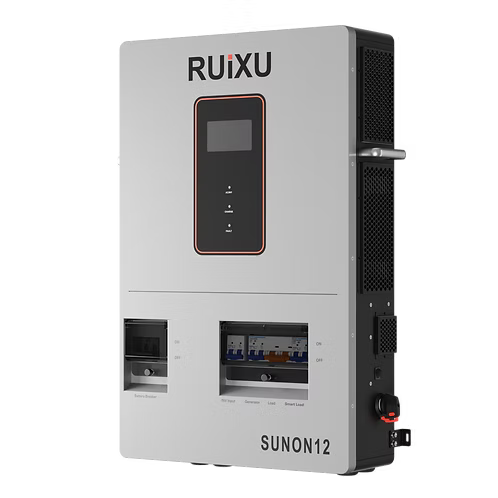

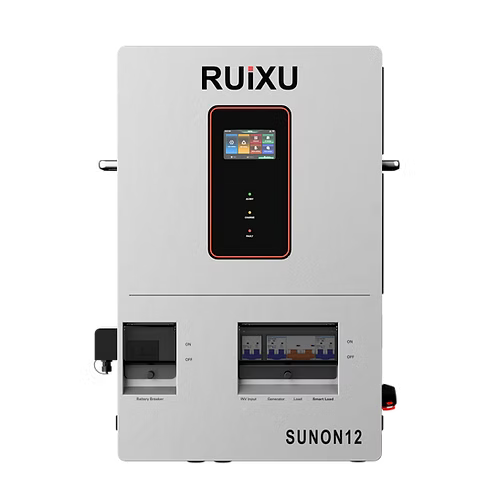

SUNON12 | RUiXU Single/Split-Phase Off-Grid Inverter | 12kW

Advanced solar energy storage solution compatible with 48V batteries, featuring a charging capacity of up to 250A. The innovative SUB working mode allows for hybrid charging from both the grid and solar sources, while the time-sharing charge and discharge function optimizes energy usage. Supporting parallel connections of up to six units for a total capacity of 72kW, this inverter is ideal for both residential and commercial applications. Efficiently harness and manage solar energy for maximum savings and performance with the SUNON12.

Powerful Hybrid Charging
Supports charging up to 150A, combining solar and grid hybrid charging

Intelligent Time-Sharing
Allows for timed charging and discharging, maximizing energy efficiency.

Stackable Design
Stack up to 6 units for a total output of 72kW

Dual MPPT Technology
Dual MPPT design ensures optimal solar energy utilization, 99% MPPT efficiency.

Smart Load Output
63A capacity,Adaptive control via voltage / SOC, and PV input

Generator Compatibility
Dedicated generator input ,Selectable 120V or 240V operation

Bypass Output
Up to 125A capacity Seamless switching via EMS

Rapid Shutdown
Quickly de-energizes solar PV system to protect first responders

WiFi & App Integration
Connects via WiFi to an app for easy access and monitoring of information.

RUiXU 12kW Single/Split-Phase Off-Grid Inverter
